Frontline 500
Chemical/FR Protection
NFPA 1990 (1991) Certified Apparel For Chemical Flash-Fire Protection.
Certified to NFPA 1990 (1991), Frontline® 500 offers proven three-way protection – broad chemical holdout, plus flame resistance and radiant heat protection for the additional hazards encountered in a chemical flash-fire. NFPA certification includes base plus Optional Flash Fire and Liquified Gas requirements. Like many Kappler garments, this is a 'multi-use, single exposure’ suit. Frontline 500 provides excellent holdout for the ASTM F1001 battery and many additional chemicals.
To ensure optimal radiant heat protection, Kappler's focus on user survivability included Pyroman Thermal Manikin testing in addition to the NFPA 1990 (1991) Chemical Flash Fire Option. Pyroman results for Frontline 500 indicated 0% body burn – a huge confidence factor when facing a chemical flash situation.
Frontline 500 Details
- Single suit provides proven three-way protection – chemical, flash-fire and radiant heat protection.
- Excellent “survivability” performance – 0% body burn in Pyroman Thermal Manikin testing.
- NFPA-certified 'multi-use, single-exposure' garment provides economical alternative to expensive FR reusables.
- Expanded-View AntiFog Visor System enhances responder safety.
- Removable Nomex Overgloves, plus field-replaceable 2N1® Glove System which eliminates inner glove inversion.
- Highly flexible 48” gas-tight AquaSeal® zipper facilitates easier donning and doffing.
- Fabric does not contain PFAS Chemistry. PFAS found in FEP lens at this time. Read more about PFAS.
- Typical Applications: Hazmat response and chemical handling with potential for chemical flash-fire.
AntiFog Visor System
View a video showcasing the benefits of Kappler’s new larger AntiFog Visor System. (note: old vs. new comparison shows Frontline® garment)
10 Seconds Of Video That Could Save Your Life!
The Pyroman Thermal Manikin test dramatically illustrates how Kappler technology improves user survivability.
Because of Kappler’s commitment to user survivability, Frontline garments designed to protect against a chemical flash-fire are subjected to intense testing in order to simulate real-world exposure. Chemical flash-fires are known to generate heat up to 1900º F. The Pyroman Thermal Manikin test at North Carolina State University produces this environment for 6 seconds in order to predict a percentage of body burn a wearer might experience. Sensors on the manikin indicate not only the area of the body affected, but also predict severity of the burn. The Frontline 500 encapsulating suit performed exceptionally well in both measurements, with 0% body burn indicated.
Online Pricing Guide.
Clear, informative product literature is a Kappler hallmark. View our online pricing guide for Frontline and our entire catalog of products.
View Frontline PricingFrontline 500 Style Options

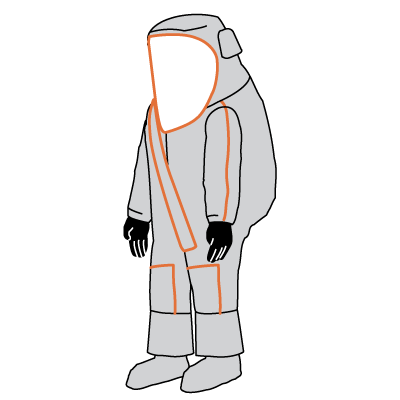

F5H582-91
Vapor Total Encapsulating Suit
Frontline® 500 NFPA 1990 (1991) Certified Vapor Total Encapsulating Suit Front Entry AquaSeal® Gas-Tight Zipper, Double Storm Flaps with FR Hook & Loop Closure, Expanded View AntiFog Visor System with Additional FEP Overlay, Expanded Back, Field Replaceable 2N1® Glove System and Removable Nomex or Kevlar Overgloves, Attached Sock Booties with Splash Guards, Knee Reinforcements, 2 Exhaust Valves, Heat Sealed / Taped on Inner and Outer Seams.
Sizes: SM/MD- 4XL
Colors: Silver
Case QTY: 1 /cs
Case Weight: 51lbs / 23.13 kg
F5H582-91BC
Vapor Total Encapsulating Suit
Frontline® 500 NFPA 1990 (1991) Certified Vapor Total Encapsulating Berry Compliant Suit. Rear Entry AquaSeal® Gas-Tight Zipper, Double Storm Flaps with FR Hook & Loop Closure, Expanded View AntiFog Visor System with Additional FEP Overlay, Expanded Back, Field Replaceable 2N1® Glove System and Removable Nomex or Kevlar Overgloves, Attached Sock Booties with Splash Guards, Knee Reinforcements, 2 Exhaust Valves, Heat Sealed / Taped on Inner and Outer Seams.
Sizes: SM/MD- 4XL
Colors: Silver
Case QTY: 1 /cs
Case Weight: 51lbs / 23.13 kg

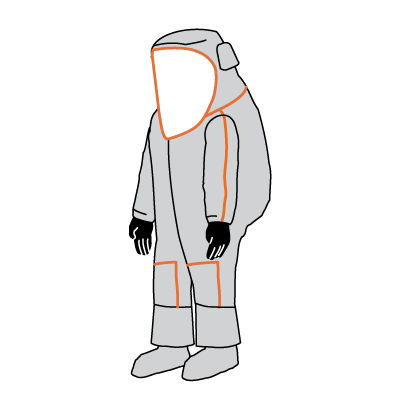

F5H583-91
Vapor Total Encapsulating Suit
Frontline® 500 NFPA 1990 (1991) Certified Vapor Total Encapsulating Suit Rear Entry AquaSeal® Gas-Tight Zipper, Double Storm Flaps with FR Hook & Loop Closure, Expanded View AntiFog Visor System with Additional FEP Overlay, Expanded Back, Field Replaceable 2N1® Glove System and Removable Nomex or Kevlar Overgloves, Attached Sock Booties with Splash Guards, Knee Reinforcements, 2 Exhaust Valves, Heat Sealed / Taped on Inner and Outer Seams.
Sizes: SM/MD- 4XL
Colors: Silver
Case QTY: 1 /cs
Case Weight: 51lbs / 23.13 kg
F5H583-91BC
Vapor Total Encapsulating Suit
Frontline® 500 NFPA 1990 (1991) Certified Vapor Total Encapsulating Berry Compliant Suit. Rear Entry AquaSeal® Gas-Tight Zipper, Double Storm Flaps with FR Hook & Loop Closure, Expanded View AntiFog Visor System with Additional FEP Overlay, Expanded Back, Field Replaceable 2N1® Glove System and Removable Nomex or Kevlar Overgloves, Attached Sock Booties with Splash Guards, Knee Reinforcements, 2 Exhaust Valves, Heat Sealed / Taped on Inner and Outer Seams.
Sizes: SM/MD- 4XL
Colors: Silver
Case QTY: 1 /cs
Case Weight: 51lbs / 23.13 kg
ChemScan® labels – quick, accurate and only from Kappler.
Scan the label with your phone’s QR reader for a complete list of chemicals tested against your garment’s protective fabric.
Frontline 500 Chemical Test Data
| ASTM F1001 Chemical Test Battery* | |
|---|---|
| Chemical | Minutes |
| Acetone | >480 |
| Acetonitrile | >480 |
| Carbon Disulfide | >480 |
| Dichloromethane | 253 |
| Diethylamine | >480 |
| Dimethylformamide | >480 |
| Ethyl Acetate | >480 |
| n - Hexane | >480 |
| Methyl Alcohol | >480 |
| Nitrobenzene | >480 |
| Sodium Hydroxide | >480 |
| Sulfuric Acid | >480 |
| Tetrachloroethylene | >480 |
| Tetrahydrofuran | >480 |
| Toluene | >480 |
| Gases | |
| Ammonia Gas | >480 |
| 1,3 Butadiene Gas | >480 |
| Chlorine Gas | >480 |
| Ethylene Oxide Gas | >480 |
| Hydrogen Chloride Gas | >480 |
| Methyl Chloride Gas | >480 |
Frontline garments are designed for chemical flash fire protection FOR ESCAPE ONLY in the event of a chemical flash fire.
| Chemical Warfare Agent Data** | ||
|---|---|---|
| Chemical Agent | Minutes | Criteria |
| Bis (2-chloroethyl) sulfide (Mustard:HD) | >480 | 4.0 ug/cm2 |
| Isopropyl methylfluorophosphonate (Sarin:GB) | >480 | 1.25 ug/cm2 |
| Chlorovinyl arsinedichloride (Lewisite:L) | >240 | 4.0 ug/cm2 |
| O-ethyl S-(2-diisopropylaminoethyl) methylphosphonothiolate (Nerve:VX) | >480 | 1.25 ug/cm2 |
Frontline 500 Heat, Flame and Thermal Test Data
Frontline 500 has been tested for thermal protective performance (TPP) in accordance with ISO 17492, Clothing for Protection Against Heat and Flame, and showed a TPP value of 32.
Frontline 500 meets the requirements for flame resistance in accordance with ASTM F1358.
Frontline 500 meets requirements of NFPA 1990 (1991), including base requirements plus optional Flash-Fire and Liquified Gas requirements.
Frontline 500 has been tested in accordance with ASTM F 1930 Standard Test Method for Evaluation of Flame Resistant Clothing for Protection Against Flash Fire Simulations Using an Instrumented Manikin. The Frontline 500 ensemble garment indicated 0% body burn after a six-second burn test.
Need to see all the chemicals tested against the Frontline 500 Fabric?
View All Chemicals
Check HazMatch® For Complete Chemical Test Results.
The details shown here represent only a fraction of the chemicals tested against Kappler fabrics – a list that’s constantly being expanded. The latest list of chemicals in the Kappler database is always available via HazMatch – get the mobile app or use the online application here. If you don’t see your specific chemical, click here for details on Kappler’s free testing program.
View HazMatch Free Testing ProgramFrontline 500 Resources & Downloads
Frontline 500 Product Information
Product Flyer Product Flyer (Español) Frontline Sizing Info PFAS Statement Storage/Shelf Life StatementView Demos & Training Videos:
Folding & Packing The Frontline® 500 AntiFog Visor Demonstration Level A Suit Pressure Test Kit Replacing the Exhaust Valve Valve Assembly and Inspection Level A Glove Replacement GuideTechnical Data:
View ASTM Data View All Chemicals Tested in HazMatch Technical Data Charts
